制作王者荣耀技能范围指示器

今天教大家制作王者荣耀中使用的技能范围指示器

类型包含：区域圆形、小范围圆形、矩形、扇形

参考下图：

代码已写好注释，有不懂的可以留言问我。

技能摇杆代码：

using UnityEngine;
using System.Collections;
using UnityEngine.UI;
using UnityEngine.EventSystems;
using System;
public class SkillJoystick : MonoBehaviour, IPointerDownHandler, IPointerUpHandler, IDragHandler {
    public float outerCircleRadius = 100;
    Transform innerCircleTrans;
    Vector2 outerCircleStartWorldPos = Vector2.zero;
    public Action<Vector2> onJoystickDownEvent;     // 按下事件
    public Action onJoystickUpEvent;     // 抬起事件
    public Action<Vector2> onJoystickMoveEvent;     // 滑动事件
    void Awake()
    {
        innerCircleTrans = transform.GetChild(0);
    }
    void Start()
    {
        outerCircleStartWorldPos = transform.position;
    }
    /// <summary>
    /// 按下
    /// </summary>
    public void OnPointerDown(PointerEventData eventData)
    {
        innerCircleTrans.position = eventData.position;
        if (onJoystickDownEvent != null)
            onJoystickDownEvent(innerCircleTrans.localPosition / outerCircleRadius);
    }
    /// <summary>
    /// 抬起
    /// </summary>
    public void OnPointerUp(PointerEventData eventData)
    {
        innerCircleTrans.localPosition = Vector3.zero;
        if (onJoystickUpEvent != null)
            onJoystickUpEvent();
    }
    /// <summary>
    /// 滑动
    /// </summary>
    public void OnDrag(PointerEventData eventData)
    {
        Vector2 touchPos = eventData.position - outerCircleStartWorldPos;
        if (Vector3.Distance(touchPos, Vector2.zero) < outerCircleRadius)
            innerCircleTrans.localPosition = touchPos;
        else
            innerCircleTrans.localPosition = touchPos.normalized * outerCircleRadius;
        if (onJoystickMoveEvent != null)
            onJoystickMoveEvent(innerCircleTrans.localPosition / outerCircleRadius);
    }
}

技能范围指示器代码：

using UnityEngine;
using System.Collections;
using System.Collections.Generic;
public enum SkillAreaType
{
    OuterCircle = 0,
    OuterCircle_InnerCube = 1,
    OuterCircle_InnerSector = 2,
    OuterCircle_InnerCircle = 3,
}
public class SkillArea : MonoBehaviour {
    enum SKillAreaElement
    {
        OuterCircle,    // 外圆
        InnerCircle,    // 内圆
        Cube,           // 矩形
        Sector60,        // 扇形
        Sector120,        // 扇形
    }
    SkillJoystick joystick;
    public GameObject player;
    public SkillAreaType areaType;      // 设置指示器类型
    Vector3 deltaVec;
    float outerRadius = 6;      // 外圆半径
    float innerRadius = 2f;     // 内圆半径
    float cubeWidth = 2f;       // 矩形宽度 （矩形长度使用的外圆半径）
    int angle = 60;             // 扇形角度
    bool isPressed = false;
    string path = "Effect/Prefabs/Hero_skillarea/";  // 路径
    string circle = "quan_hero";    // 圆形
    string cube = "chang_hero";     // 矩形
    string sector60 = "shan_hero_60";    // 扇形60度
    string sector120 = "shan_hero_120";    // 扇形120度
    Dictionary<SKillAreaElement, string> allElementPath;
    Dictionary<SKillAreaElement, Transform> allElementTrans;
    // Use this for initialization
    void Start()
    {
        joystick = GetComponent<SkillJoystick>();
        joystick.onJoystickDownEvent  = OnJoystickDownEvent;
        joystick.onJoystickMoveEvent  = OnJoystickMoveEvent;
        joystick.onJoystickUpEvent  = OnJoystickUpEvent;
        InitSkillAreaType();
    }
    void OnDestroy()
    {
        joystick.onJoystickDownEvent -= OnJoystickDownEvent;
        joystick.onJoystickMoveEvent -= OnJoystickMoveEvent;
        joystick.onJoystickUpEvent -= OnJoystickUpEvent;
    }
    void InitSkillAreaType()
    {
        allElementPath = new Dictionary<SKillAreaElement, string>();
        allElementPath.Add(SKillAreaElement.OuterCircle, circle);
        allElementPath.Add(SKillAreaElement.InnerCircle, circle);
        allElementPath.Add(SKillAreaElement.Cube, cube);
        allElementPath.Add(SKillAreaElement.Sector60, sector60);
        allElementPath.Add(SKillAreaElement.Sector120, sector120);
        allElementTrans = new Dictionary<SKillAreaElement, Transform>();
        allElementTrans.Add(SKillAreaElement.OuterCircle, null);
        allElementTrans.Add(SKillAreaElement.InnerCircle, null);
        allElementTrans.Add(SKillAreaElement.Cube, null);
        allElementTrans.Add(SKillAreaElement.Sector60, null);
        allElementTrans.Add(SKillAreaElement.Sector120, null);
    }
    void OnJoystickDownEvent(Vector2 deltaVec)
    {
        isPressed = true;
        this.deltaVec = new Vector3(deltaVec.x, 0, deltaVec.y);
        CreateSkillArea();
    }
    void OnJoystickUpEvent()
    {
        isPressed = false;
        HideElements();
    }
    void OnJoystickMoveEvent(Vector2 deltaVec)
    {
        this.deltaVec = new Vector3(deltaVec.x, 0, deltaVec.y);
    }
    void LateUpdate()
    {
        if(isPressed)
            UpdateElement();
    }
    /// <summary>
    /// 创建技能区域展示
    /// </summary>
    void CreateSkillArea()
    {
        switch (areaType)
        {
            case SkillAreaType.OuterCircle:
                CreateElement(SKillAreaElement.OuterCircle);
                break;
            case SkillAreaType.OuterCircle_InnerCube:
                CreateElement(SKillAreaElement.OuterCircle);
                CreateElement(SKillAreaElement.Cube);
                break;
            case SkillAreaType.OuterCircle_InnerSector:
                CreateElement(SKillAreaElement.OuterCircle);
                switch (angle)
                {
                    case 60:
                        CreateElement(SKillAreaElement.Sector60);
                        break;
                    case 120:
                        CreateElement(SKillAreaElement.Sector120);
                        break;
                    default:
                        break;
                }
                break;
            case SkillAreaType.OuterCircle_InnerCircle:
                CreateElement(SKillAreaElement.OuterCircle);
                CreateElement(SKillAreaElement.InnerCircle);
                break;
            default:
                break;
        }
    }
    /// <summary>
    /// 创建技能区域展示元素
    /// </summary>
    /// <param name="element"></param>
	void CreateElement(SKillAreaElement element)
    {
        Transform elementTrans = GetElement(element);
        if (elementTrans == null) return;
        allElementTrans[element] = elementTrans;
        switch (element)
        {
            case SKillAreaElement.OuterCircle:
                elementTrans.localScale = new Vector3(outerRadius * 2, 1, outerRadius * 2) / player.transform.localScale.x;
                elementTrans.gameObject.SetActive(true);
                break;
            case SKillAreaElement.InnerCircle:
                elementTrans.localScale = new Vector3(innerRadius * 2, 1, innerRadius * 2) / player.transform.localScale.x;
                break;
            case SKillAreaElement.Cube:
                elementTrans.localScale = new Vector3(cubeWidth, 1, outerRadius) / player.transform.localScale.x;
                break;
            case SKillAreaElement.Sector60:
            case SKillAreaElement.Sector120:
                elementTrans.localScale = new Vector3(outerRadius, 1, outerRadius) / player.transform.localScale.x;
                break;
            default:
                break;
        }
    }
    Transform elementParent;
    /// <summary>
    /// 获取元素的父对象
    /// </summary>
    /// <returns></returns>
    Transform GetParent()
    {
        if (elementParent == null)
        {
            elementParent = player.transform.FindChild("SkillArea");
        }
        if (elementParent == null)
        {
            elementParent = new GameObject("SkillArea").transform;
            elementParent.parent = player.transform;
            elementParent.localEulerAngles = Vector3.zero;
            elementParent.localPosition = Vector3.zero;
            elementParent.localScale = Vector3.one;
        }
        return elementParent;
    }
    /// <summary>
    /// 获取元素物体
    /// </summary>
    Transform GetElement(SKillAreaElement element)
    {
        if (player == null) return null;
        string name = element.ToString();
        Transform parent = GetParent();
        Transform elementTrans = parent.Find(name);
        if (elementTrans == null)
        {
            GameObject elementGo = Instantiate(Resources.Load(path   allElementPath[element])) as GameObject;
            elementGo.transform.parent = parent;
            elementGo.gameObject.SetActive(false);
            elementGo.name = name;
            elementTrans = elementGo.transform;
        }
        elementTrans.localEulerAngles = Vector3.zero;
        elementTrans.localPosition = Vector3.zero;
        elementTrans.localScale = Vector3.one;
        return elementTrans;
    }
    /// <summary>
    /// 隐藏所有元素
    /// </summary>
    void HideElements()
    {
        if (player == null) return;
        Transform parent = GetParent();
        for (int i = 0, length = parent.childCount; i < length; i  )
        {
            parent.GetChild(i).gameObject.SetActive(false);
        }
    }
    /// <summary>
    /// 隐藏指定元素
    /// </summary>
    /// <param name="element"></param>
    void HideElement(SKillAreaElement element)
    {
        if (player == null) return;
        Transform parent = GetParent();
        Transform elementTrans = parent.Find(element.ToString());
        if (elementTrans != null)
            elementTrans.gameObject.SetActive(false);
    }
    /// <summary>
    /// 每帧更新元素
    /// </summary>
    void UpdateElement()
    {
        switch (areaType)
        {
            case SkillAreaType.OuterCircle:
                break;
            case SkillAreaType.OuterCircle_InnerCube:
                UpdateElementPosition(SKillAreaElement.Cube);
                break;
            case SkillAreaType.OuterCircle_InnerSector:
                switch (angle)
                {
                    case 60:
                        UpdateElementPosition(SKillAreaElement.Sector60);
                        break;
                    case 120:
                        UpdateElementPosition(SKillAreaElement.Sector120);
                        break;
                    default:
                        break;
                }
                break;
            case SkillAreaType.OuterCircle_InnerCircle:
                UpdateElementPosition(SKillAreaElement.InnerCircle);
                break;
            default:
                break;
        }
    }
    /// <summary>
    /// 每帧更新元素位置
    /// </summary>
    /// <param name="element"></param>
    void UpdateElementPosition(SKillAreaElement element)
    {
        if (allElementTrans[element] == null)
            return;
        switch (element)
        {
            case SKillAreaElement.OuterCircle:
                break;
            case SKillAreaElement.InnerCircle:
                allElementTrans[element].transform.position = GetCirclePosition(outerRadius);
                break;
            case SKillAreaElement.Cube:
            case SKillAreaElement.Sector60:
            case SKillAreaElement.Sector120:
                allElementTrans[element].transform.LookAt(GetCubeSectorLookAt());
                break;
            default:
                break;
        }
        if (!allElementTrans[element].gameObject.activeSelf)
            allElementTrans[element].gameObject.SetActive(true);
    }
    /// <summary>
    /// 获取InnerCircle元素位置
    /// </summary>
    /// <returns></returns>
    Vector3 GetCirclePosition(float dist)
    {
        if (player == null) return Vector3.zero;
        Vector3 targetDir = deltaVec * dist;
        float y = Camera.main.transform.rotation.eulerAngles.y;
        targetDir = Quaternion.Euler(0, y, 0) * targetDir;
        return targetDir   player.transform.position;
    }
    /// <summary>
    /// 获取Cube、Sector元素朝向
    /// </summary>
    /// <returns></returns>
    Vector3 GetCubeSectorLookAt()
    {
        if (player == null) return Vector3.zero;
        Vector3 targetDir = deltaVec;
        float y = Camera.main.transform.rotation.eulerAngles.y;
        targetDir = Quaternion.Euler(0, y, 0) * targetDir;
        return targetDir   player.transform.position;
    }
}

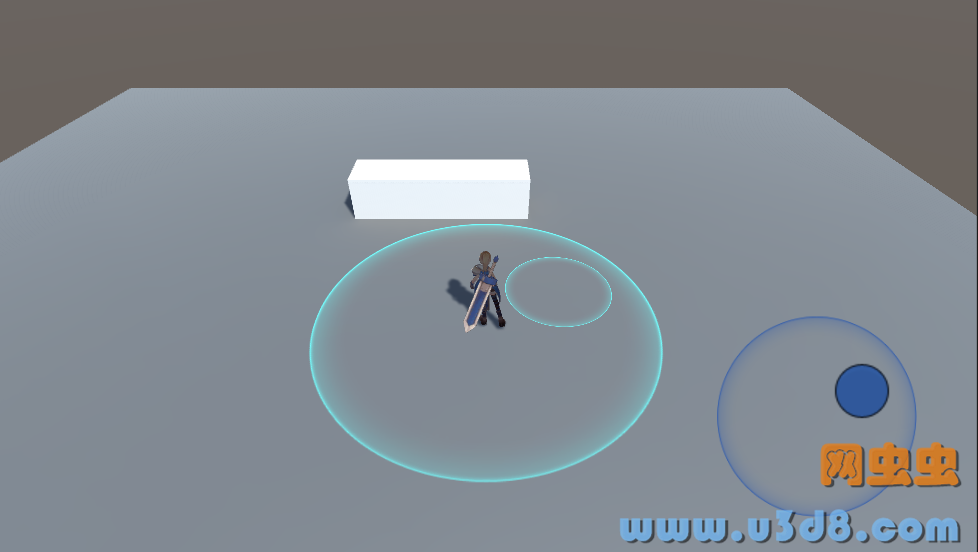

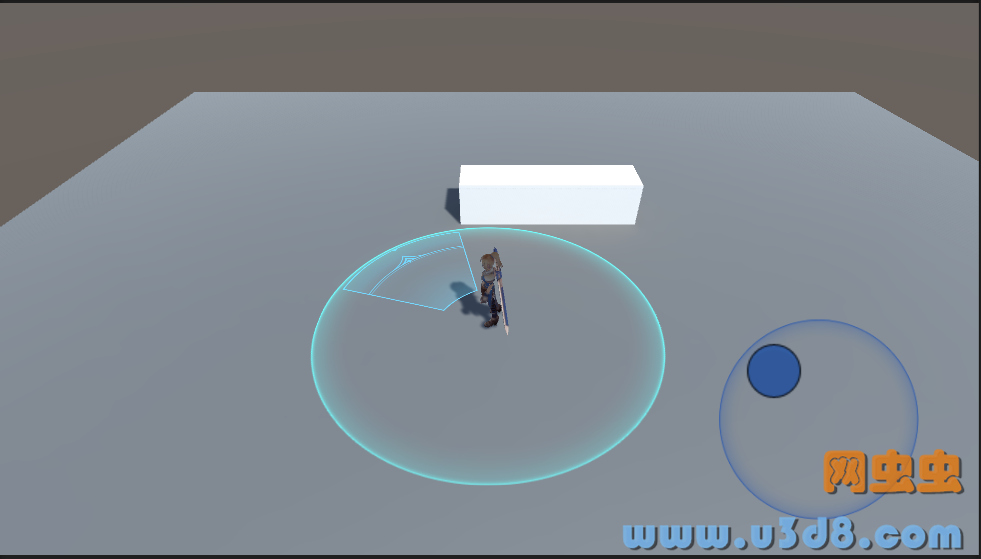

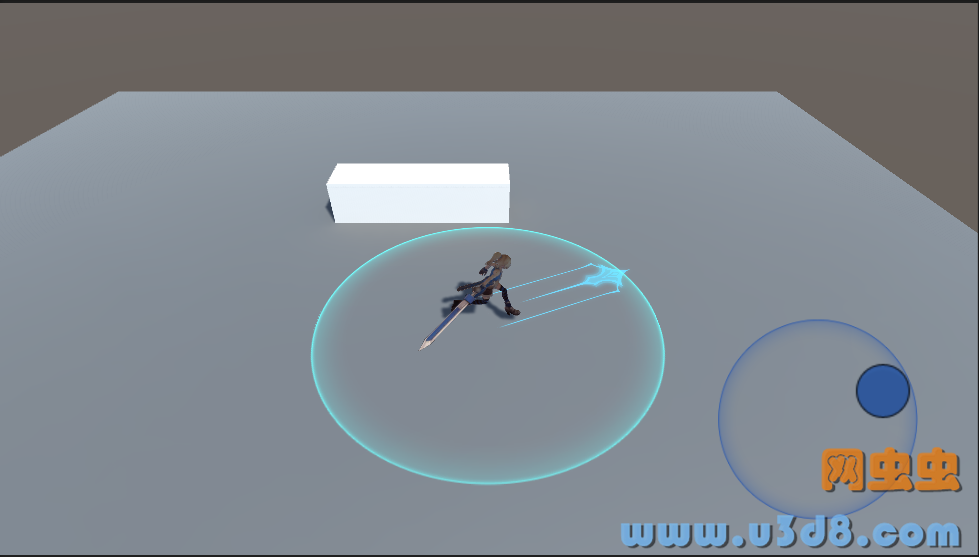

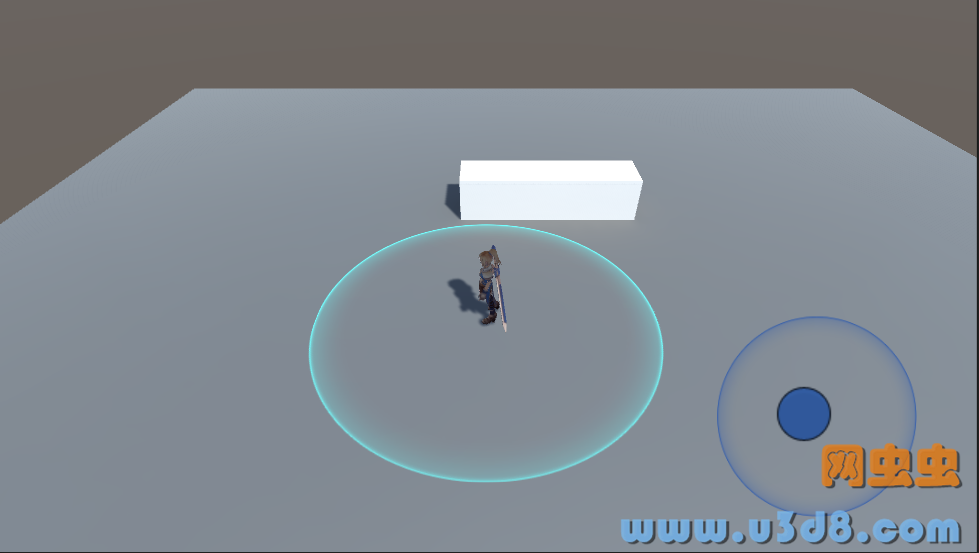

效果展示：
